Introduction

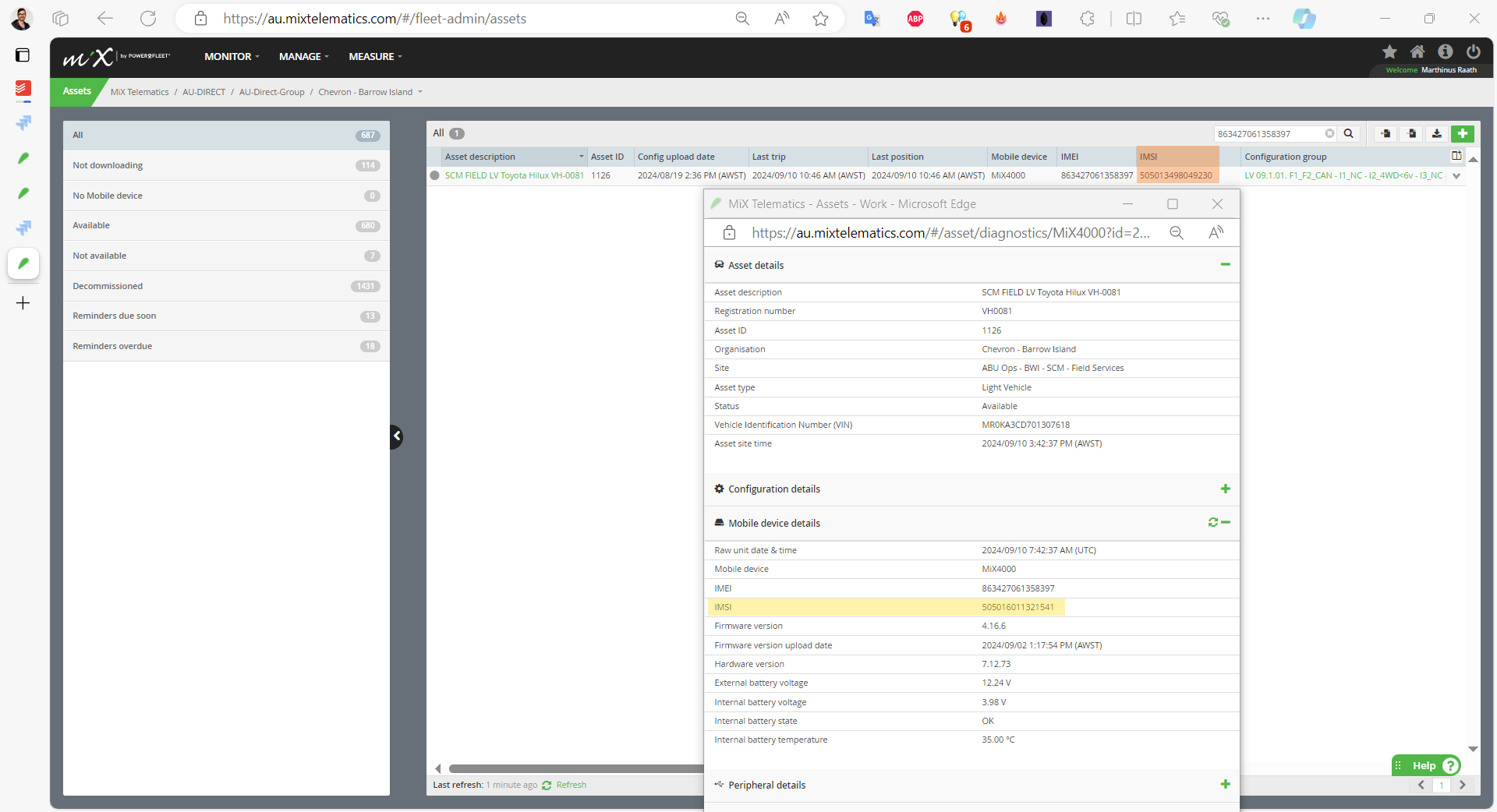

We often get the following issue, where the value we see in the Asset List page, is different from the value we see in the Diagnostics page.
The short answer for this is that they get values from different places.
If one is updated and the other is not, then the values will look different.
For this example I will look into SR-19107 IMSI has incorrect value
I will first investigate where the Diagnostic value comes from, usually from the state table.
After this I will show where the Assets List value comes from, usually from the unit properties OR property bag.

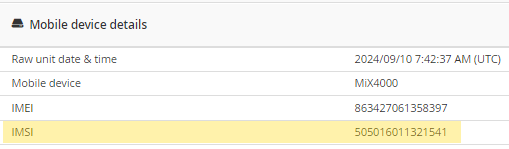

Diagnostics
In short, this usually comes from the State Table
In this case the IMEI is received after an end-point is called:
In this example it was: https://au.mixtelematics.com/DynaMiX.API/fleet-admin/assets/organisations/-2028909786913159060/2030626110269687202/diagnostics/MiX4000/mobiledevice/0
This calls the following Route in the
BE:
ROUTE: GetDiagnosticsMobileDevice
METHOD: GetDiagnosticsMobileDevice
This builds up a whole carrier.
For the IMSI specifically it comes from:
mobileDevice?.IMSI
Which is from the DeviceConfigClient
DeviceConfigClient: MobileUnits.GetDiagnosticsMobileDeviceDetails
API:
CONTROLLER: GetDiagnosticsMobileDeviceDetails
MANAGER: GetDiagnosticsMobileDeviceDetails
REPO: GetStatesForMobileUnit
DB:
[state].[MobileUnitState_GetMultipleStateValuesForMobileUnit]
DeviceConfiguration.DataProcessing
[state].[MobileUnitState]
Property Id: 6851923534434202573
Assets list
In short, this usually comes from the unit properties OR property bag
This calls some end-point like this:
https://au.mixtelematics.com/DynaMiX.API/fleet-admin/assets/groups/-2028909786913159060
This calls the following route.
BE:
AssetsListModule:
ROUTE: GET_ASSET_LIST_PAGE
METHOD: GetAssetListPage
Gets a list from AssetManager.GetAssetList (see below)
Looping through each, it calls the ToAssetListItem extension method to build up the carrier
(In this case it will handle: assetDetails.AssetConfigDetails.IMSI)
The result comes from calling the below as a Task or Gateway… depending…
AssetManager:
GetAssetList
A LOT HAPPENS IN THIS METHOD
(I will try to focus on ONE field only… IMSI)
GetAssetConfigDetailsList: Gets a list of Config details, puts it into a dictionary, to be called for each assetdetails
This will return a list of: AssetConfigDetails
(For this example it contains the IMSI)
This gets added to each: assetDetails as AssetConfigDetails
(AssetDetails has an extension method (ToAssetListItem) to buid up the individual asset carrier for the list)
A LOT happens in the extension
(This will also for instance have the IMSI)
This is also where we sometimes have to deal with the property bag
For instance to get eg. to get Asset Status or TripStatus we will do something like this…
AssetStatusBagConverter.GetTripStatus(statusItem.ToEntity())
(See Property Bag below for a bit more info)
Client: GetMobileUnitPropertiesForAssetsList
API
MobileUnitControllerRoute
MobileUnitController:
MobileUnitManager: GetMobileUnitPropertiesForAssetsList
REPO
MobileUnit
[mobileunit].[MobileUnit_GetMobileUnitPropertiesForAssetsList]
DECLARE @UNIT_IMSI_KEY INT = (SELECT [PropertyKey] FROM [definition].[Properties] dp WITH (NOLOCK) WHERE dp.PropertyId = 3870542574174346252);
SELECT mu.[MobileUnitId], mup.[Value]
FROM [mobileunit].[MobileUnitProperties] mup WITH (NOLOCK)
INNER JOIN @MobileUnits mu ON mup.[MobileUnitKey] = mu.[MUKey]
where mup.[PropertyKey] = @UNIT_IMSI_KEY;Property Bag (Not relevant for IMSI, but for eg. Trip Status)
AssetStatusValues are received from AssetsClient.GetStatusValuesAsync
We then use the Property Bag to convert these values
AssetStatusBagConverter
GetTripStatus(AssetStatusValues)
string bag = values.VehicleStatus
It pulls out a value, eg. var unitArmed = BagSerialiser.GetBool(bag, “UnitArmed”, false);
Convert(AssetStatusValues)
e.g string bag = values.VehicleStatus
assetStatus.DownloadScheduleId = BagSerialiser.GetInt(bag, “SchedID”)
Many more egs 😄
Use case… eg:
GetDiagnosticsGPS > GetAssetStatus > propertybag
CONCLUSION
Looking into the IMSI issue, we can see that:
- the Diagnostics value comes from the MobileUnitState table, while
- the Assets List value comes from the MobileUnitProperties table
We will need to:
- ensure this is the expected behaviour
- see if the MobileUnitProperties is maybe not updated when it should be.
