STM-1074 More in-depth Steps to pull Shawn's wireframe in

Getting Shawn’s code

• Open the seed app
• Find out from Shawn which branch to use
• For this story he said:
  • The html is on the Seed repo on the branch: ui-video-event-config
    https://mixtelematics.visualstudio.com/DynaMiX/_git/Seed

Pulling new HTML into our UI

• Checked out the Frangular UI repo (There is a document to get you up and running with this)
• Generate a new component to host the video event configuration page
  • ng generate component video-event-configuration —skip-tests
• Add in the routing, this helps the app know which url will open this new page
  • app-routing.module.ts
    • import { VideoEventConfigurationComponent } from “./video-event-configuration/video-event-configuration.component”;
    •   { path: ‘video-event-configuration’, component: VideoEventConfigurationComponent }

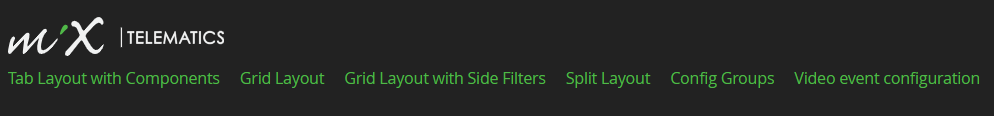

• Add a way to access this new page, lets add it to the header menu, we could have done this somewhere else

  • header.component.html

    ```html
    <a href="/video-event-configuration" class="ml-3">Video event configuration</a>
    ```


• The component will still be default, but just test if it works
  • ng serve
• Test result
  •
  •
• WORKS!!!!!
• Next I will copy over Shawn’s html, etc. This can take some work… I won’t keep perfect notes now
  • Copy to node_module
    • @mixtel
  • Copied more files
  • Moved code around
  • Changed a few uris

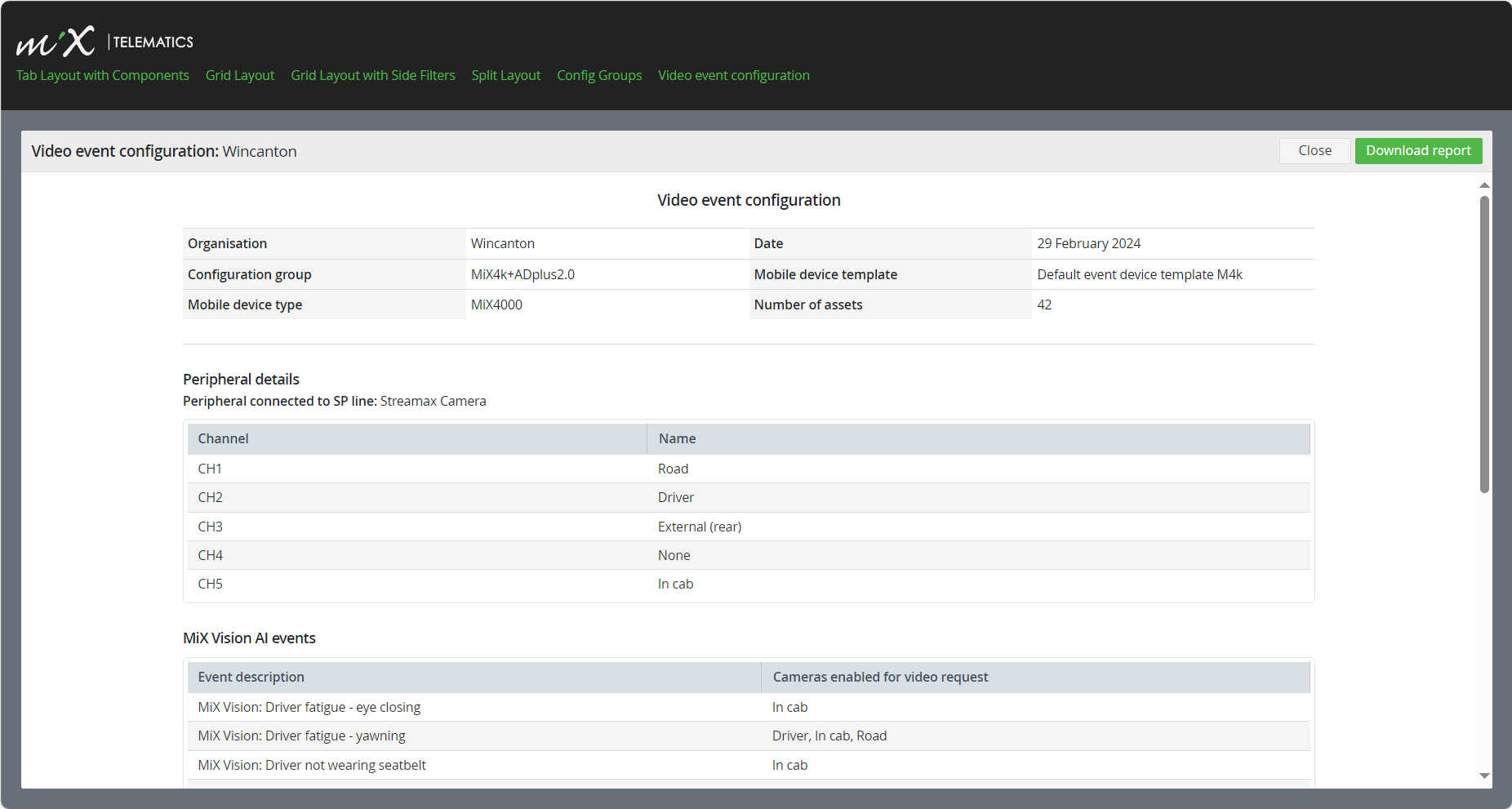

• Shawn’s result
  •
